Pipe Mixer Introduction
Pipe Mixer Introduction
A pipe mixer is a device designed to achieve uniform fluid mixing through a specific structure, efficiently completing the mixing process without mechanical moving parts. Below is a comprehensive overview of its key features and application areas:
1. Types and Structure

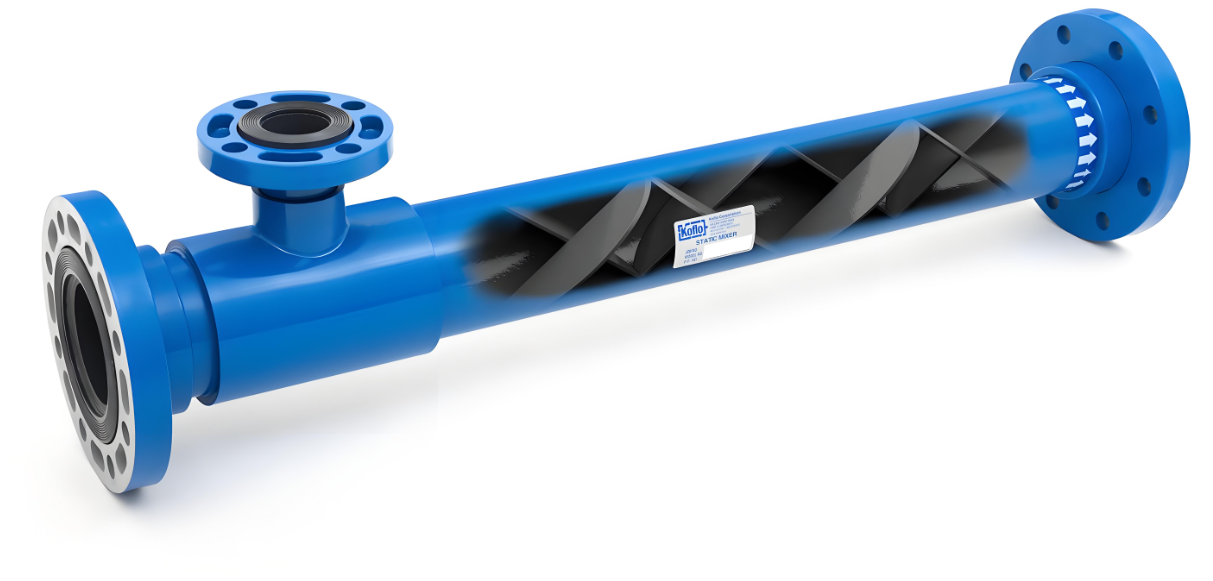

1.1 Static Mixer

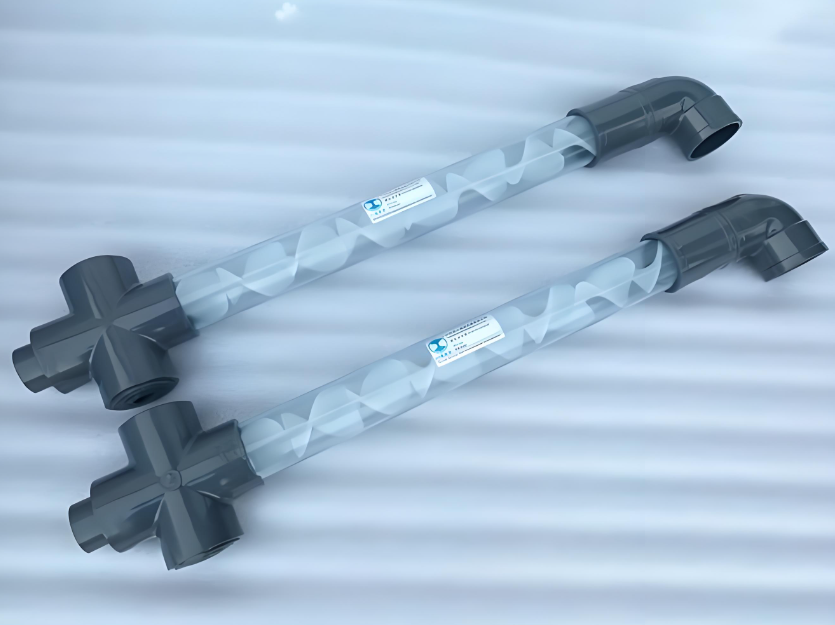

Material: Fiberglass, carbon steel, or stainless steel1 (fiberglass offers corrosion resistance and easy processing16)

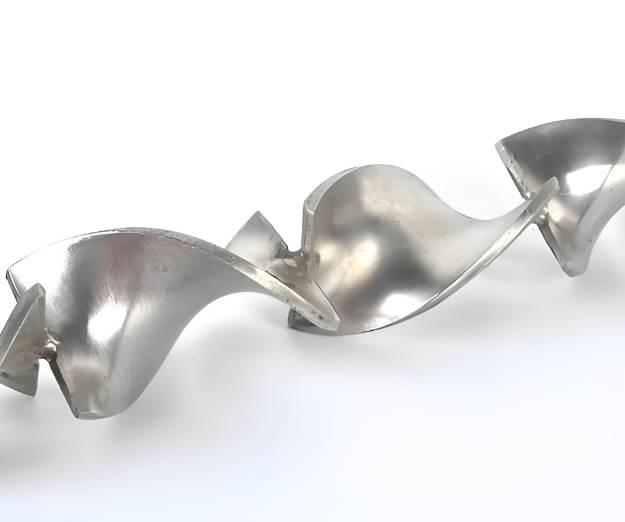

Structure: Typically consists of 3 pipe sections (adjustable), each containing 180° twisted spiral blades, with adjacent blades rotating in opposite directions and offset by 90°25
Mixing Principle: Achieves diffusion through flow division, radial mixing, and reverse rotation, with a mixing efficiency exceeding 90%27
1.2 Dynamic Mixer
Components: Motor, mixing chamber, and stirring blades, supporting variable frequency control to match flow rates1
Material: SS316 stainless steel, motor power 1.5-7.5kW1
2. Key Advantages
High Efficiency & Energy Saving: Reduces chemical usage by 20%-30%, with a head loss of only 0.4-0.6m25
Compact Design: Small footprint, can be directly installed in pipeline systems16
No External Power Required (Static Type): Operates solely on fluid flow57
3. Typical Applications
Water Treatment: Dosing coagulants, flocculants, ozone, etc., to enhance treatment efficiency26
Chemical/Environmental Engineering: Acid-base neutralization, gas-liquid mixing, etc.
